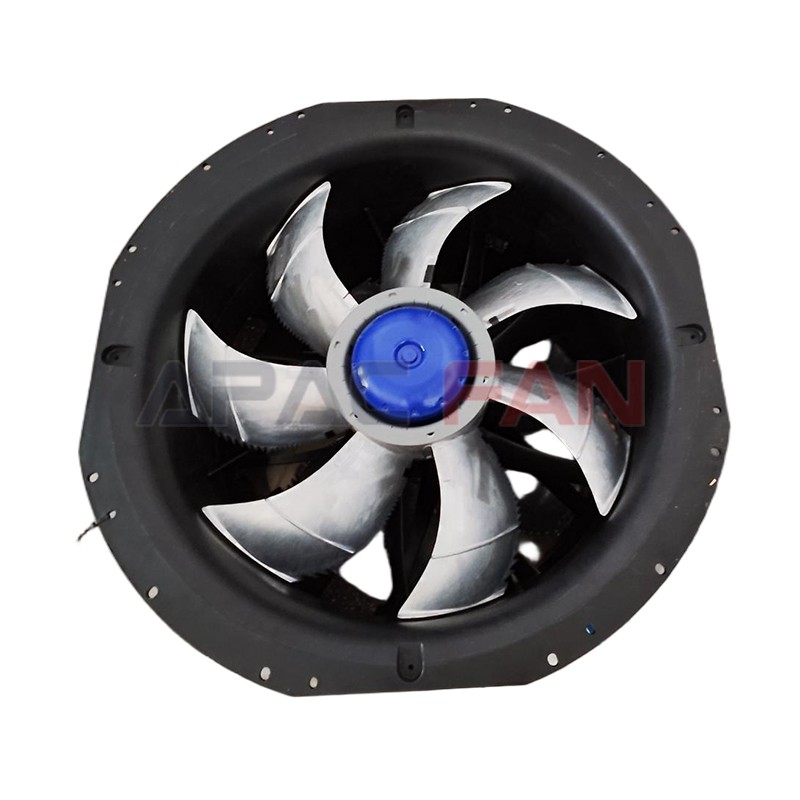

ZN091-ZIL.GQ.V5P1 182406 ZIEHL-ABEGG Axial Fan

Brand：

ZIEHL-ABEGG

Category：

Axial Fan

Description：

Brand：ZIEHL-ABEGG
Part No：ZN091-ZIL.GQ.V5P1 182406
Fan Type：Axial Fan
Rated Voltage(V)：3`380-480
Size(mm)：910
Max.Air Flow(m³/h)：36000
Max.Pressure(Pa)：340
Input Power(W)：4000
Speed(rpm)：1199

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

ZN091-ZIL.GQ.V5P1 182406

Fan Type：

Axial Fan

Rated Voltage(V)：

3~380-480

Size(mm)：

910

Max.Air Flow(m³/h)：

36000

Max.Pressure(Pa)：

340

Input Power(W)：

4000

Speed(rpm)：

1199

Noise(db)：

Description

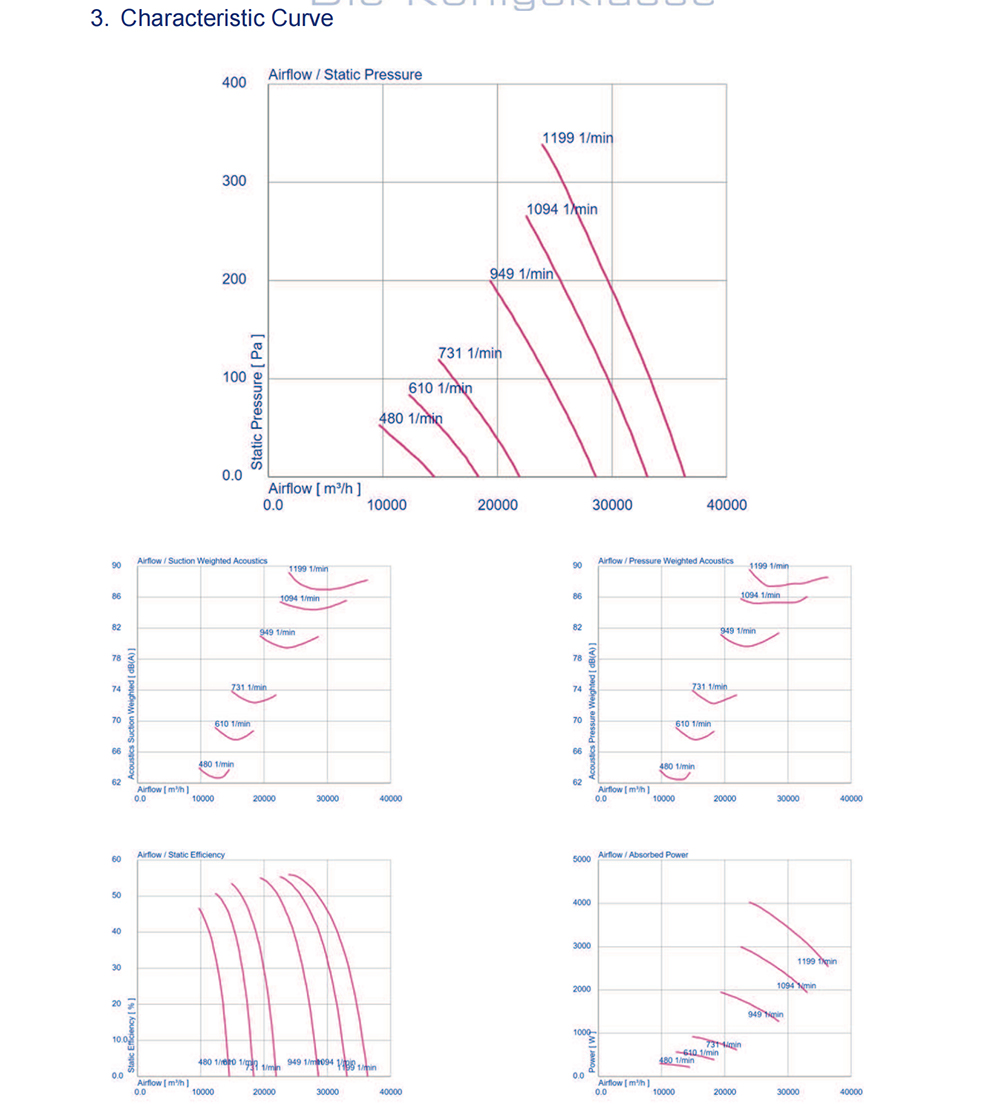

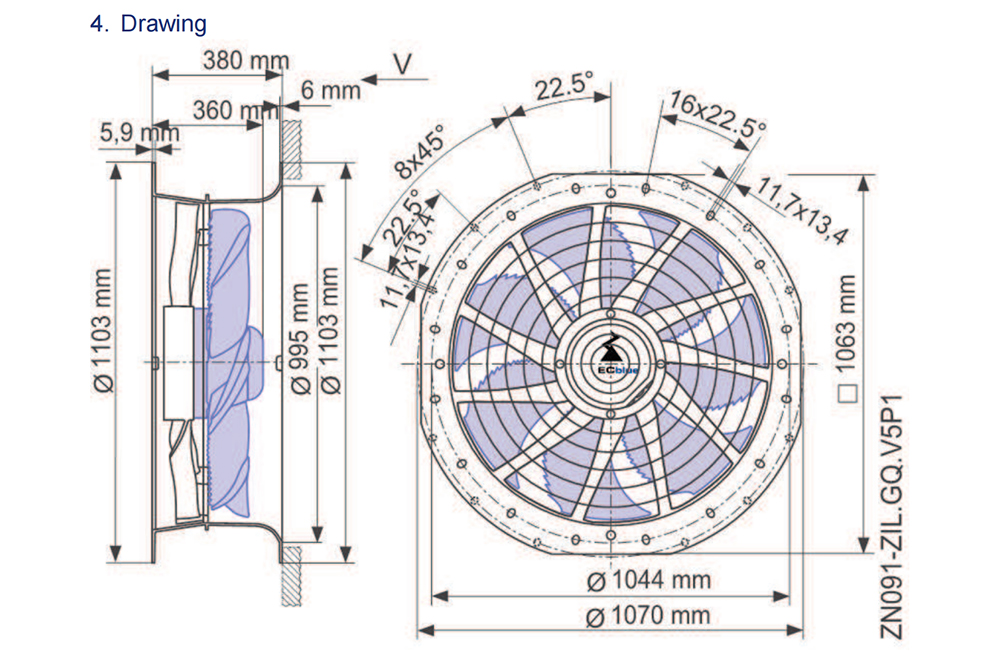

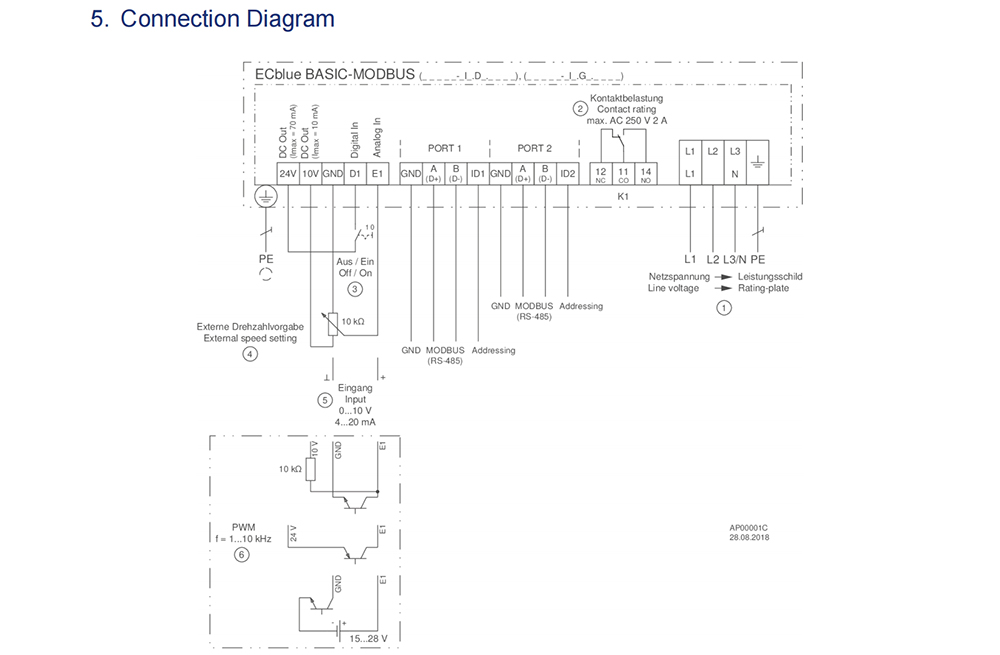

ZN091-ZIL.GQ.V5P1 182406 Ziehl-abegg Specification drawing：
